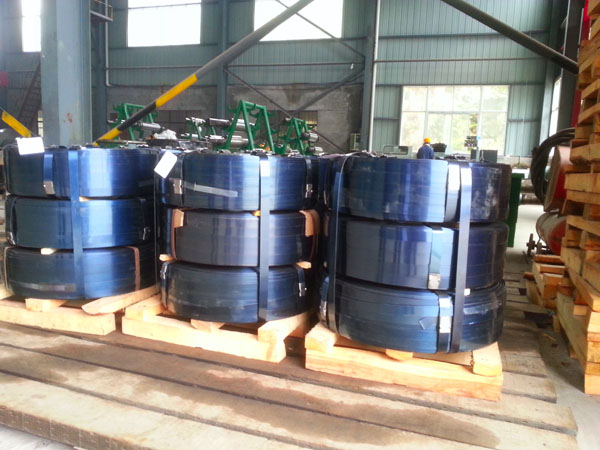

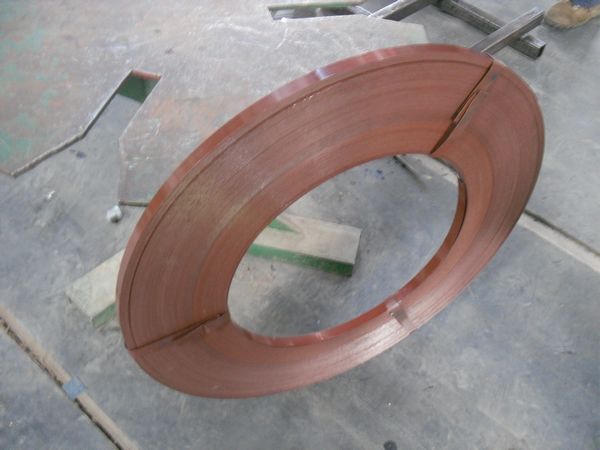

High tensile steel strap

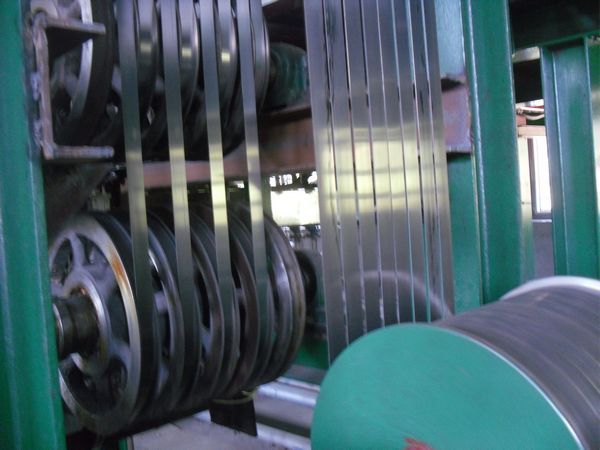

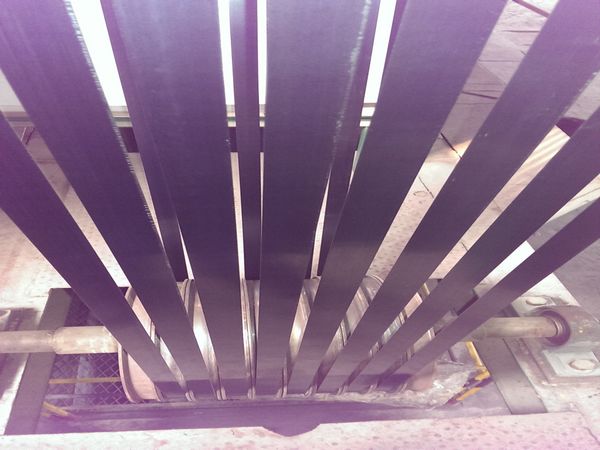

our factory is produced superior quality steel straps,which which are manufactured from special cold rolled steel and are fully heat-treated,pained and waxed in a continued line by automatic machining controlling to get high tensile strength above 930Mpa and elongation over6% designed for the most heavy-duty usage.

Strap Size				Average Strength				Yield
Width		Thickness		High tensile strength (Mpa)/ Elongation				Ft/lb	M/kg
Inch	mm	inch	mm	≥930/≥8%		≥980/≥12%
				Newton	LBS	Newton	LBS
				(N)	LBS	(N)	LBS
5/8	16	0.015	0.4	5952	1339	6272	1411	29.6	19.9
		0.02	0.5	7440	1674	7840	1764	23.7	15,92
		0.023	0.6	8928	2009	9408	2117	19.7	13.27
3/4	19	0.02	0.5	8835	1988	9310	2095	20	13.41
		0.023	0.6	10602	2385	11172	2514	16.6	11.17
		0.028	0.7	12369	2783	13034	2933	14.3	9.58
		0.031	0.8	14136	3181	14896	3352	12.5	8.38
		0.035	0.9	15903	3578	16758	3771	11.1	7.45
		0.04	1	17670	3976	18620	4190	10	6.7
1	25	0.023	0.6	13950	3139	14700	3308	12.6	8.49
		0.028	0.7	16275	3662	17150	3859	10.8	7.28
		0.031	0.8	18600	4185	19600	4410	9.5	6.37
		0.035	0.9	20925	4708	22020	4955	8.4	5.66
		0.04	1	23250	5231	24500	5513	7.6	5.1
1 1/4	31.75	0.031	0.8	23622	5315	25800	5811	7.5	5.02
		0.035	0.9	26575	5980	28004	6301	6.6	4.46
		0.04	1	29528	6644	31115	7001	6	4.01
		0.047	1.2	35433	7972	37338	8401	5	3.33
