Steel coils of surface color

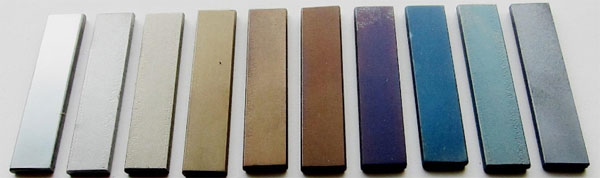

The table below shows the temperatures and the associated colours required when tempering steel for particular uses.The tempering colors can be used to judge the final properties,tool steel is often tempered in the light to dark straw range, whereas spring steel is ofter tempered t the blue. However, the final hardness of the tempered steel will vary, depending on the composition of the steel. The oxide film will also increase in the thickness over time. Therefore, steel that has been held at 400。F for a very long time may turn brown or purple, even though the temperature never exceeded that needed to produce a light straw color. Other factors affecting the final outcome are oil film on the surface and the type of heat source used.
steel coil of surface color
| tempering color |
temperature( ℃) |
typical use |
| pale yellow |
230 |
brass |
| dark yellow |
240 |
mild steel |
| brown |
250 |
wood tools |
| brown/purple |
260 |
wood working tools |
| purple |
270 |
Axes |
| duck purple |
280 |
cold forging tools |
| blue |
300 |
spring |
| particular usage of tempered steel strip |
| tempered color |
required Tem.(℃) |
finished surface |
| red |
500-900 |
bull red---deep red---light red |
| Orange |
950-1000 |
orange |
| yellow |
1000-1100 |
yellow |
| yellow/white |
1100-above |
yellow/white |
